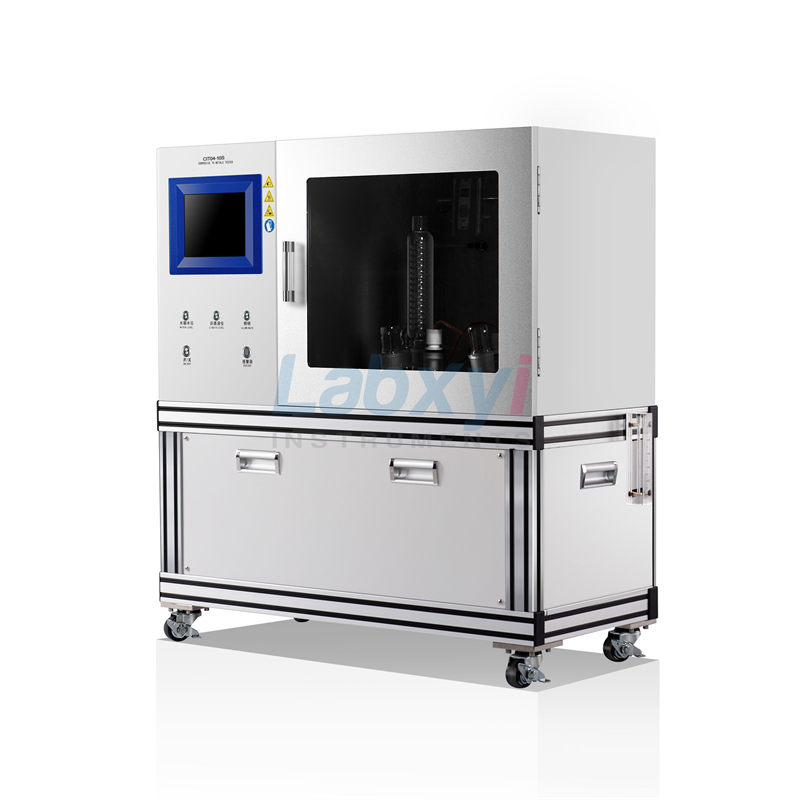

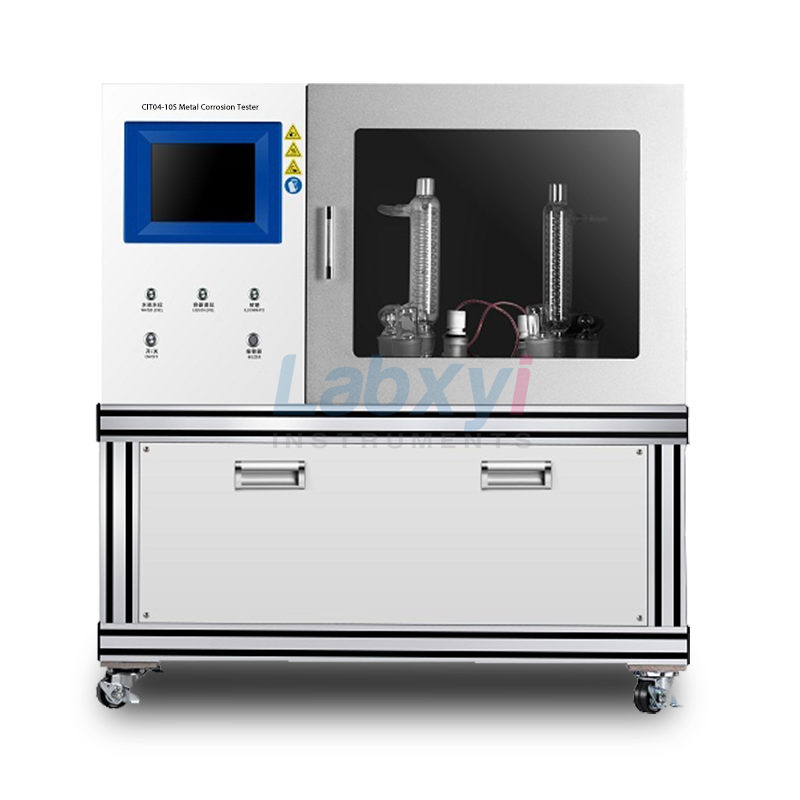

CIT04-10S metal corrosion tester is to determine the causticity of the liquid and the solid which may turn into liquid during transportation, consistent with the United Nations “on the Recommendations on the Transport of Dangerous Goods, Tests and Criteria Manual” 37.4 determination of metal corrosion test method and “corrosion inspection of hazardous properties of dangerous goods safety norms.”

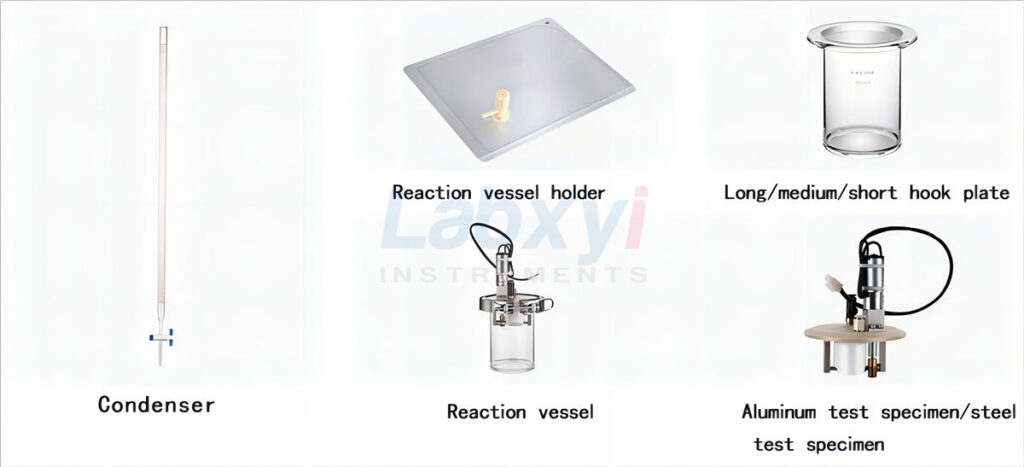

CIT04-10S metal corrosion tester consists of three parts : the display control section, test systems and water supply system, with automatic detection of the sample liquid location , condensate water automatic cycle, thermostat water bath replenish water automatically and other functions. Test system is equipped with two sets of test apparatus can detect corrosion test of two samples at the same time, the operator can monitor the entire testing process through the LCD screen.
Product Features
- embedded processor, Windows CE operating system;
- 8-inch LCD touch screen, display the test status in real time;
- constant temperature water tank automatic temperature control, temperature control accuracy up to ± 1 °C;

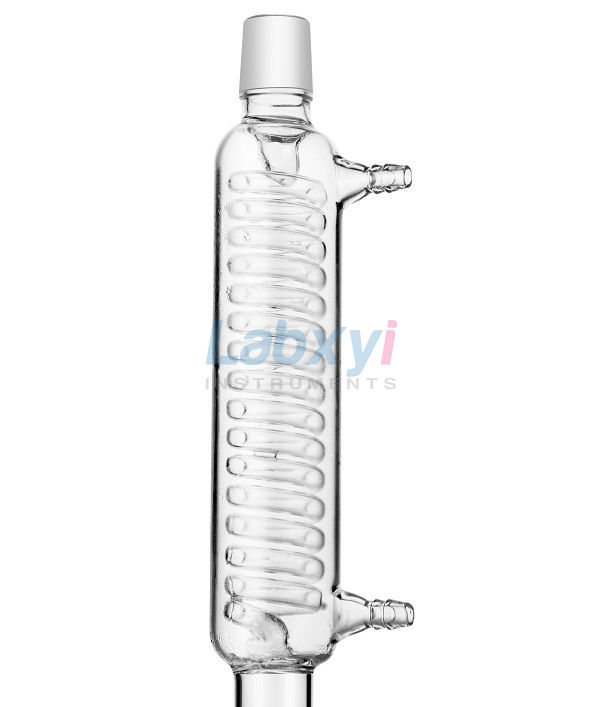

- spiral condenser and reserve water tank in communication, to achieve automatic condensate circulation, reduce volatile samples;
- U-shaped heat pipe, heating circulating water bath to ensure temperature uniformity;
- the sample liquid level detection, real-time detection sample level to ensure timely up-like;
- water bath intelligent automatic replenishment function, to achieve effective control of water and water temperature;
- equipment failure detection and automatic sound and light alarm, ensure that the test is more secure;
- 0-28 days of uninterrupted tests, the whole without human intervention, reduce the intensity of experimental work;
- during the test, real-time display running time, real-time temperature for the whole test process at a glance;
- testing process fully automated, without human intervention, support parameter setting, data storage, viewing reports.
Product parameters
| MODEL | CIT04-10S |
| Working environment | 5 °C ~ 30 °C, <85% RH |
| Temperature range | room temperature ~ 80 °C |
| Temperature accuracy | ± 1 °C |
| average temperature | ± 0.5 °C |
| Timing range | 0-28 days |
| the sample vessel volume | 3000mL, 2000mL effective volume |
