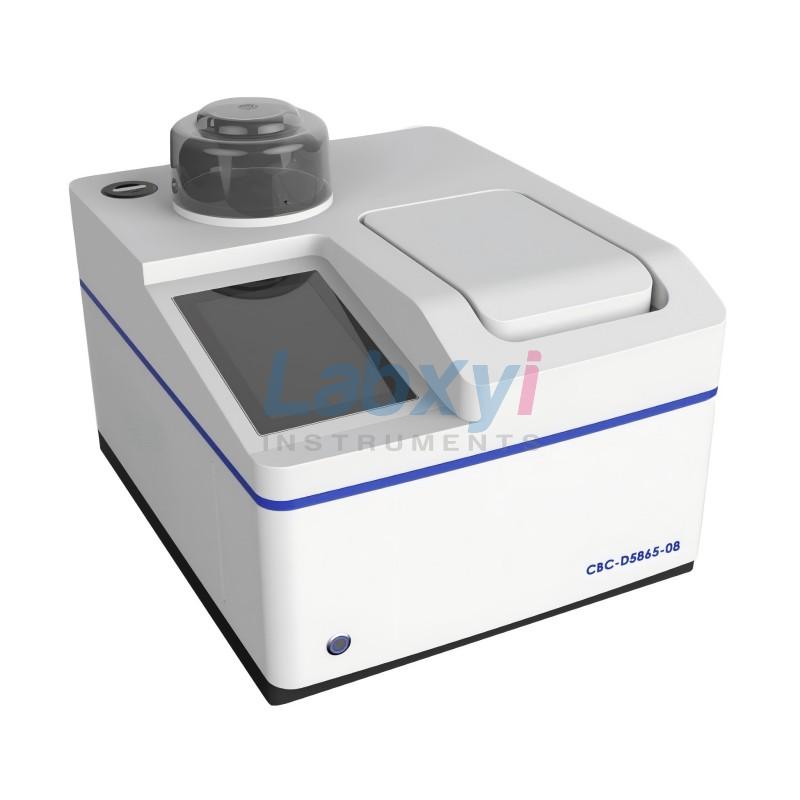

CBC-D5865-08 Automatic Calorimeter

CBC-D5865-08 is new generation calorimeter which is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.



Models Available:

• CBC-D5865-08 Automatic Calorimeter (Ignition Wire)
• CBC-D5865-08J Automatic Calorimeter (Laser Ignition Technology)



Standard Configuration:

• Main analyzer
• Standard CV bomb -2 Units
• Crucibles
• Benzoic Acid
• ring kit
• Tool kit



Optional Configuration:

• Lens paper
• Pellet press
• Halogen Resistant Oxygen Vessel



Use standard

• ASTM D5865-13 “Determination of calorific value of coal and coke”
• ISO 1928:2009 “Determination of calorific value of solid fossil fuels”
• CEN/TS 14918 “Determination of calorific value of solid biofuel”
• BS EN 15400-2011 “Solid Recycled Fuel-Calorific Value Test”
• IS: 1350-1970 “Determination of coal and coke”



Features

Patented laser ignition technology allowing easier and faster sample preparation, no ignition wire or cotton thread is needed(Available in CBC-D5865-08J model only)

8min fast analysis for one sample

Automatic oxygen vessel lifting

Automatic oxygen charging and venting

Intelligent temperature control of the jacket and the water tank, the water constant temperature stability of the jacket reaches to 0.02℃

Easy and convenient touch screen operation

Small space occupied with compact design

Intelligent diagnosis and safety protection function



Specifications:

Model	CBC-D5865-08 / CBC-D5865-08J  Automatic Calorimeter
Conforms to Method	AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213,GB/T 30727, ISO 1928, ISO 9831, ISO 18125
Precision (1g Benzoic Acid)	0.05% RSD *
Measuring range	Up to 50000J
Heat Capacity Stability	≤0.2% within one year
Temp. Resolution	0.0001℃
Control Ability	2 Units/ 1 PC available
Analysis Time per Sample	8mins
Test Per Hour	Single control	Double control
	Up to 7	Up to 15
Jacket Type	Isoperibol and Adiabatic
Ignition Method	Patented Laser Technology – Available in CBC-D5865-08J model only
Bomb Identification	Yes
Balance Connection	Available
Network Connection	Available
Bucket Filling	Automatic
Oxygen Filling	Automatic
Bomb Vessel Lifting	Automatic
Structure	Benchtop
Power Supply	Single phase, AC220V±10%, 50/60Hz, ≤500w
Net Weight	55kg
Dimensions(L×W×H)	485mm×495mm×425mm
*Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5% 2.No strong interference source nearby 3.Clean water circuit with distilled water
