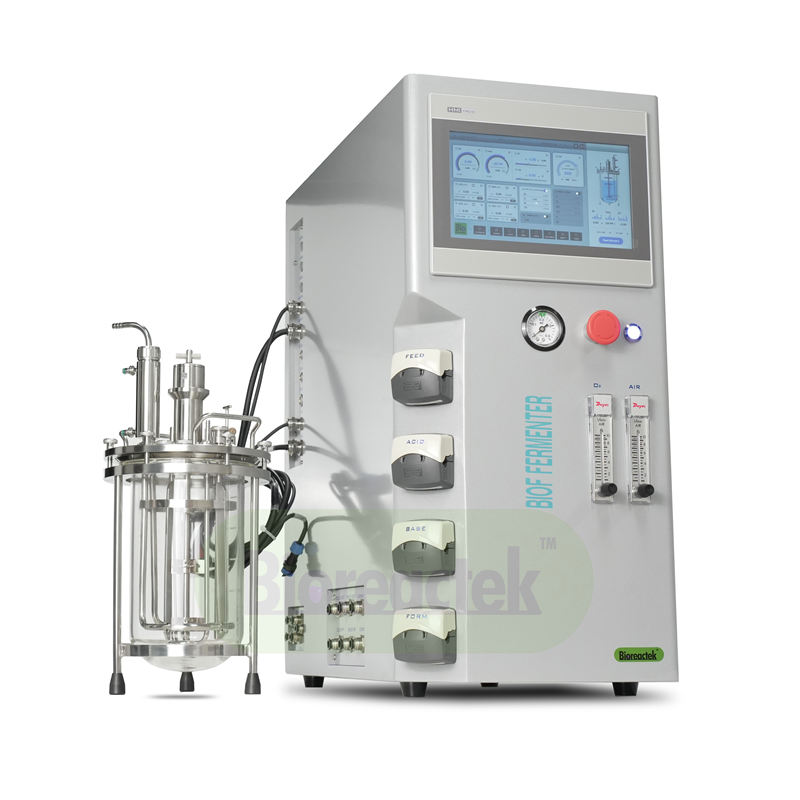

FEATURES OF Cell Bactria Bioreactor Fermenter

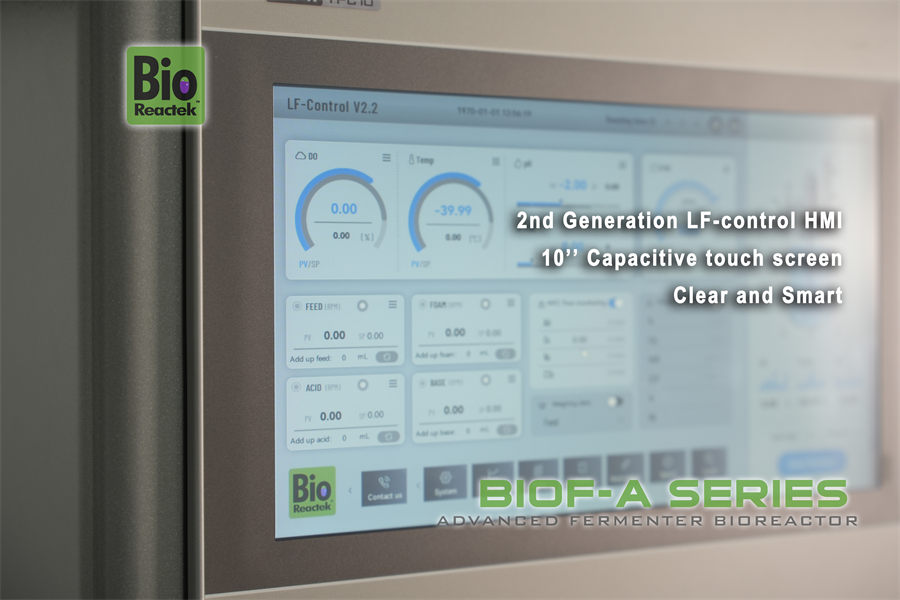

bioreactek™ second generation GUI
- New generation graphical interface, leading industry design
- Digital dynamic panel, tank dynamics, process changes at a glance
- Refined design, bright color division, simple and fast operation
- Omnipotent function includes four-way intake control, exhaust gas analysis
Siemens high-end processor
- Adopt Siemens high-end processors, in line with international standards
- Modular design and expandable function, expandable Smart200 module
- PROFINET, network and other bus applications, accurate and fast control
Watson-Marlow High Precision Variable Speed Pump
- Watson-Marlow high precision flip-top pump, easy to use and strong stability
- Step electrode variable speed regulation, standard bus communication control
- FOAM, ACID, BASE, FEED four-way pump can be customized and interchangeable
Convenient for laboratory operation

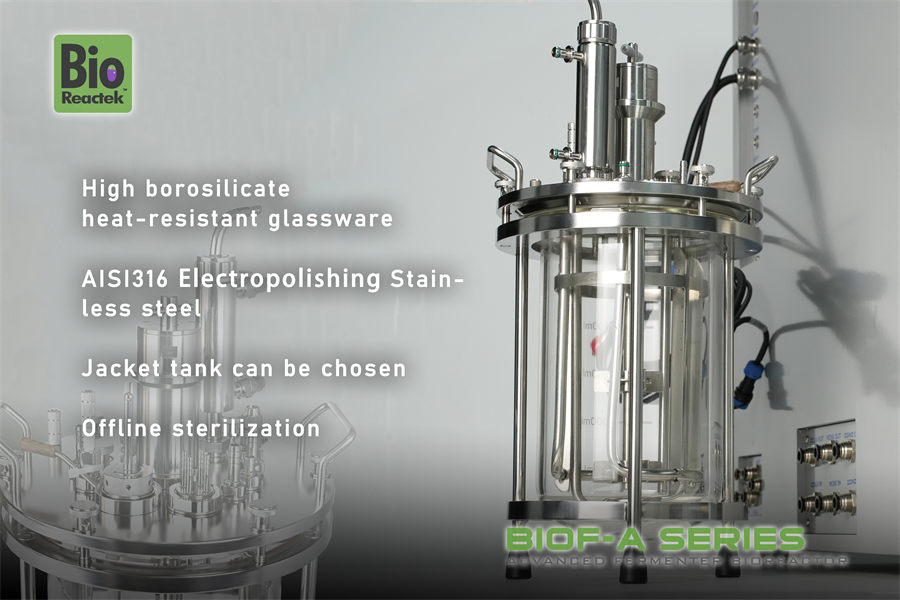

- Overall AISI316L stainless steel material, fine grinding, electrolytic polishing, the overall manufacturing process is comparable to the same imported products from abroad

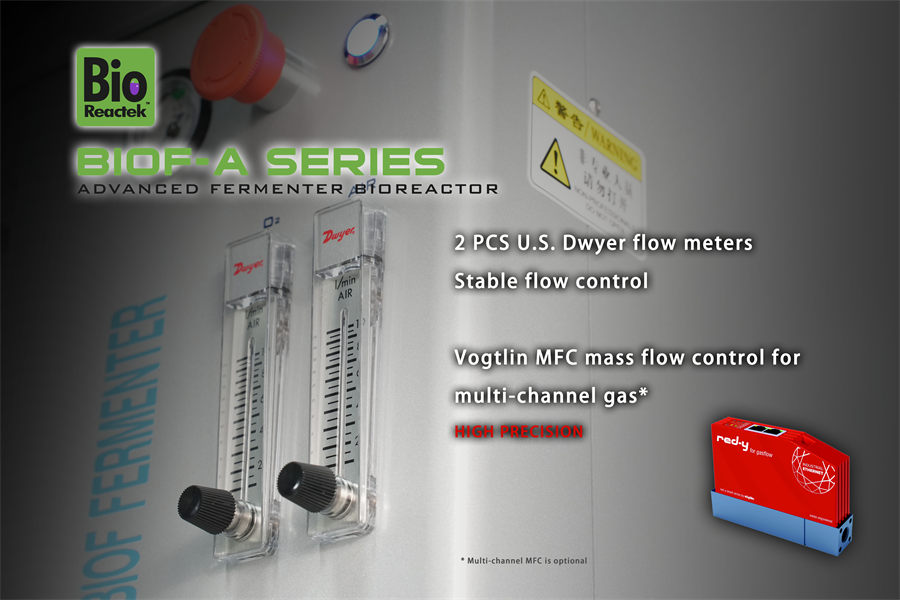

Automatic air intake system
- Thermal mass flow meter MFC imported from Switzerland
- Ventilation digital control, can be associated with DO control to reduce the impact of ventilation on the process and automate the control process
Most powerful LF-M controller
- Integratedtank cold water temperature control, condenser col d water temperature control Extensible: exhaust gas analysis, ORP, weighing balance, biomass analysis,

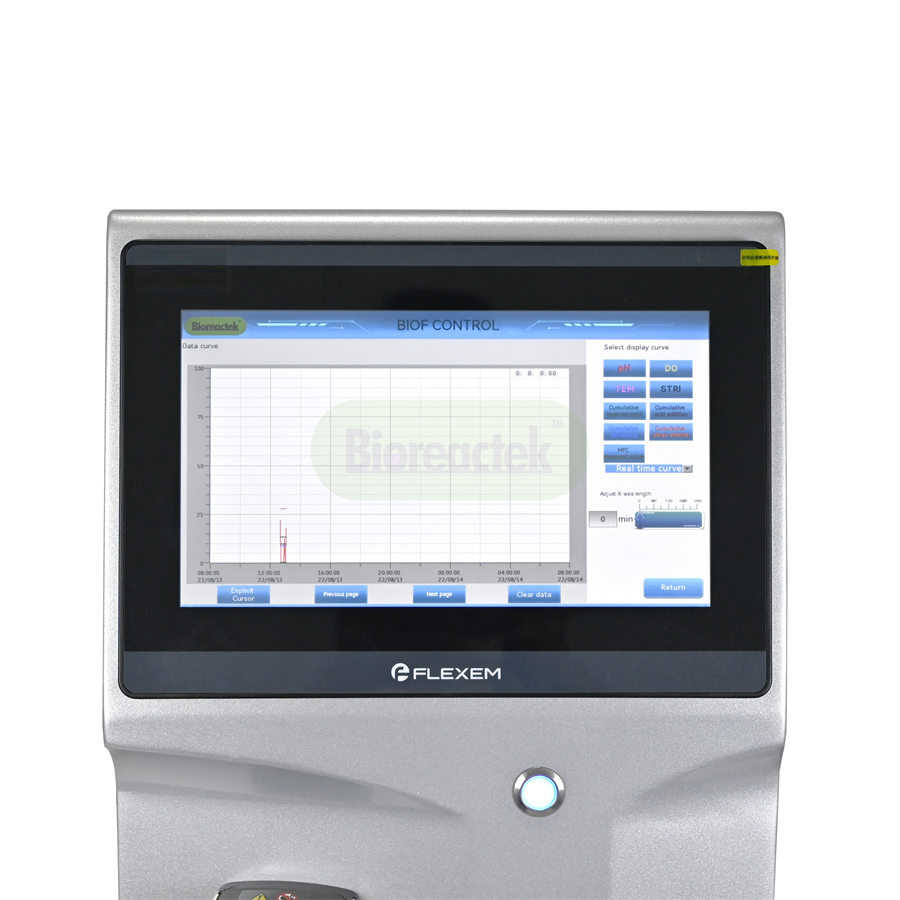

- Built-inLF Control 2 control software, which can implement online monitoring, recording and curve display
- Can be used with analysis software LF-Analysis V1.0 (optional)

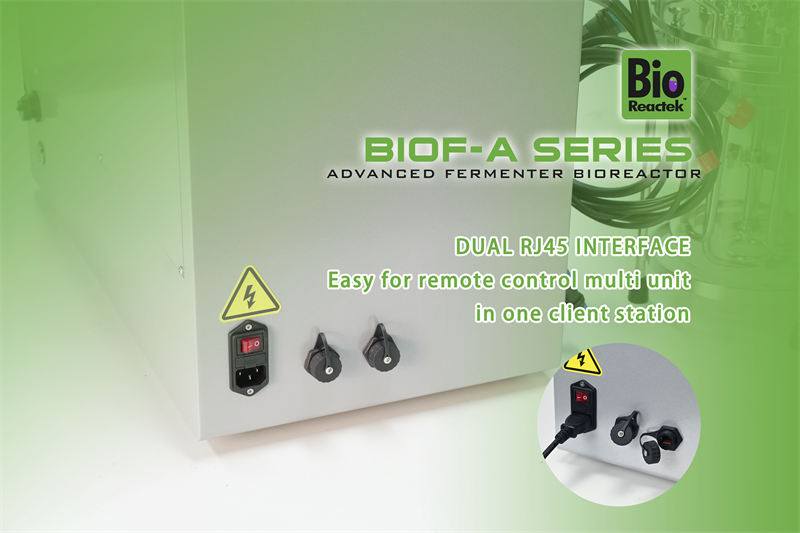

- Canbe connected via Ethernet data communication (optional)
Specifications OF Cell Bactria Bioreactor Fermenter
| ITEM NAME | DESCRIPTION |
| Tank | BIOF-1A(1L), BIOF-3A(3L), BIOF-5A(5L), BIOF-7A(7L),BIOF-10A(10L), BIOF-13A(13L), BIOF-15A(15L) can be chosen, no need to replace the controller
Filling volume:Max.80% Design pressure: Max 0.15Mpa |
| Interface of tank | *air inlet
four-in-one feeding port temperature sleeve cooling coil PH/DO electrode port feed port spare port exhaust gas condenser (removable) |

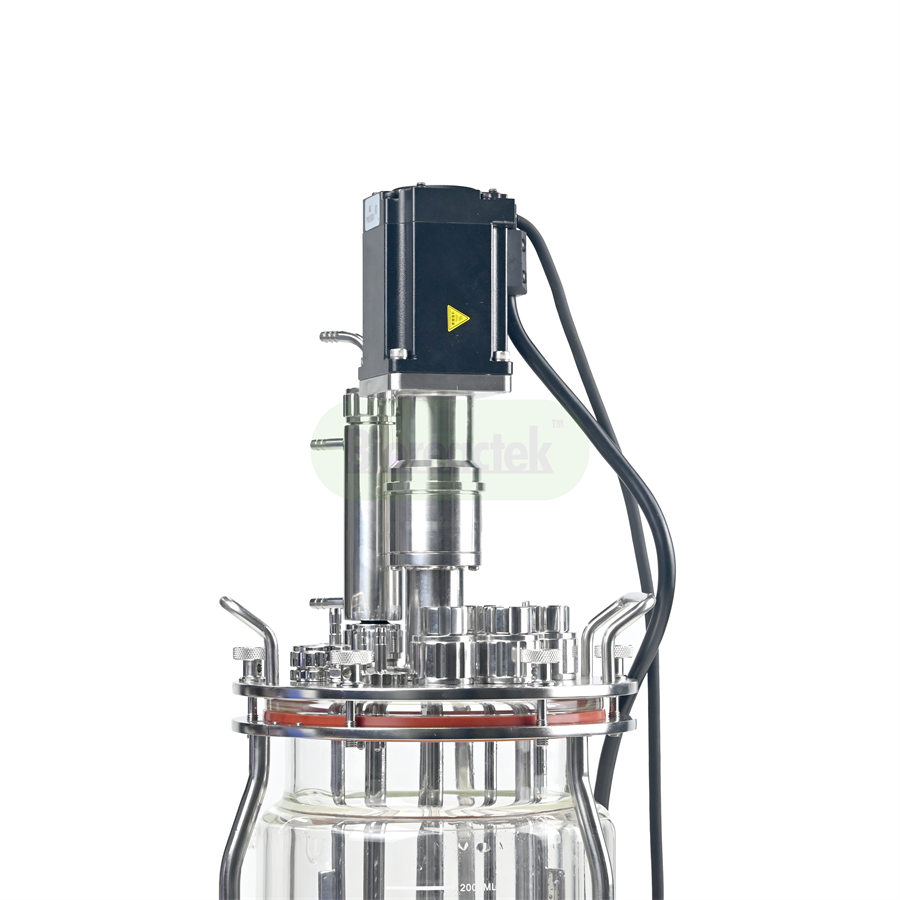

| Stirring system | High precision and low noise servo motor, special mechanical seal
Rotation speed: 0~1200rpm ±1rpm * Fifteen stages of speed regulation, the program sets the required speed of each stage |
| Air intake system | Standard 2 channel intake: air; quick release structure
* Imported thermal mass flow meter MFC is optional Annular gas distributor, optional microporous bubble distributor |
| pH | Range: 2.00~12.00pH, Accuracy: ±0.02
Sterilization temperature: 0~130°C Control: BIOF-K integrated transmitter with filter, signal isolator, RS-485 communication |
| DO2 | Range: 0~200%, Accuracy: ±0.1%
* Sterilization temperature: 0~130°C * Control: BIOF-K integrated transmitter with filter, signal isolator, RS-485 communication |
| Temperature Control System | Thermal blanket electric heating method
24V safe voltage Temperature control range cooling water +5°C~65°C±0.1°C Temperature sensor: imported PT100 platinum electrode (high temperature resistant quick release form) |
| Cold water module | Integrated BIOF-M controller control
* Communicate with the host PLC, the solenoid valve controls the on-off * Cold water connector adopts imported self-locking quick interface, and the interface contains self-locking valve |

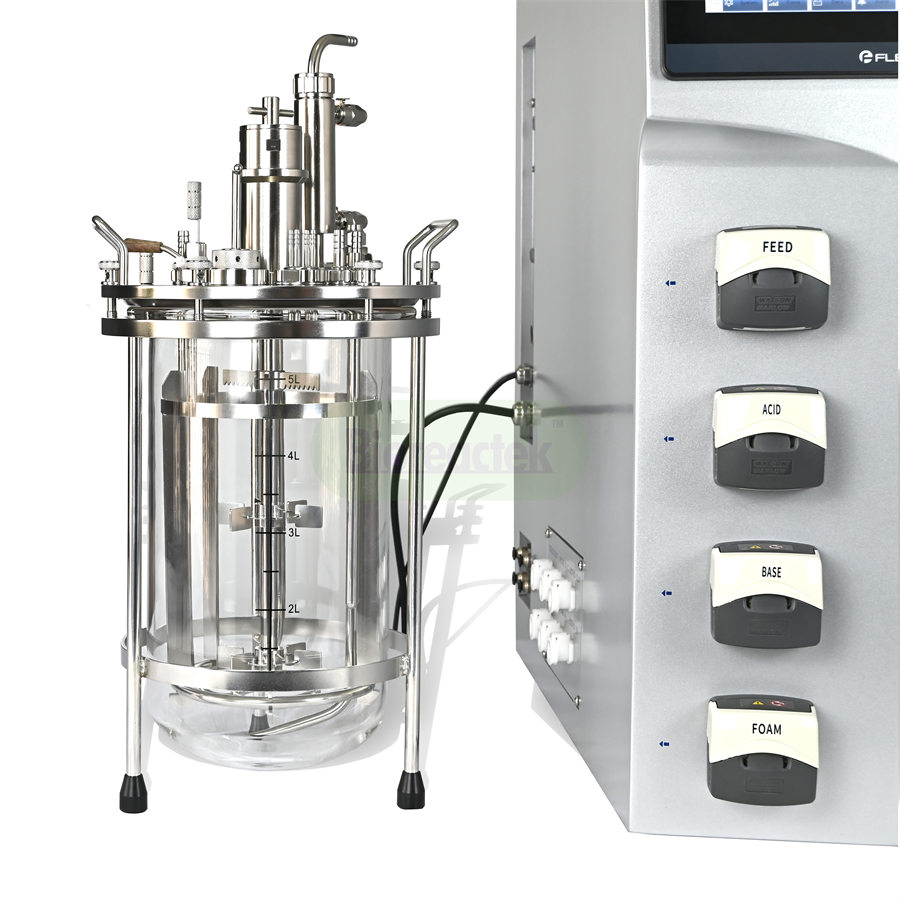

| Peristaltic pump | FOAM/FEED/ACID/BASE 4-way peristaltic pump
* Original imported flip-top peristaltic pump, quick connection Peristaltic pump can achieve: cumulative flow, instantaneous flow, speed adjustment, 100% adjustment, associated PID adjustment, manual control and other functions |
| Defoaming system | Mechanical defoaming stirring paddle with rake pressure type mechanical defoaming pulp
Defoamer: Flow addition by peristaltic pump Highly sensitive defoaming electrode |
| Sampling | Sterile sampling system, autoclavable
The negative pressure design of the syringe can get rid of the trouble of easy contamination during the sampling process Dual design, users can also use traditional flame inoculation to inoculate |
| Power supply | Input: AC110~240v/1.2kw
Output: Motors, thermal blankets, peristaltic pumps and other power components use 24V safe voltage |
* Means special features
COMPONENT BRANDS OF Cell Bactria Bioreactor Fermenter
| ITEM NAME | BRAND | ORIGINAL |
| pH sensor | METTLER TOLEDO / HAMILTON | Switzerland |
| DO2 sensor | METTLER TOLEDO / HAMILTON | Switzerland |
| pH, DO2 signal line | METTLER TOLEDO | Switzerland |
| PLC | Siemens high-end series | Germany |
| Touch screen | MCGS | Taiwan |
| Machinery Seal | JOHN CRANE | U.K. |
| Peristaltic pump | Watson-Marlow | U.K. |
| Refill bottle | SCHOTT | Germany |
| Thermal Mass Flow Meter | Vogtlin | Switzerland |
| PT100 sensor | JUMO | Germany |
| Low voltage electrical | Schneider | France |
| Cold water quick plug | CPC | U.S. |
OPTIONAL ACCESSORIES OF Cell Bactria Bioreactor Fermenter
In order to allow users to better use our fermentation tanks, we have developed a variety of high-quality accessories for users
To meet the needs of users in different industries and different working conditions, users can choose relevant accessories according to their own conditions
