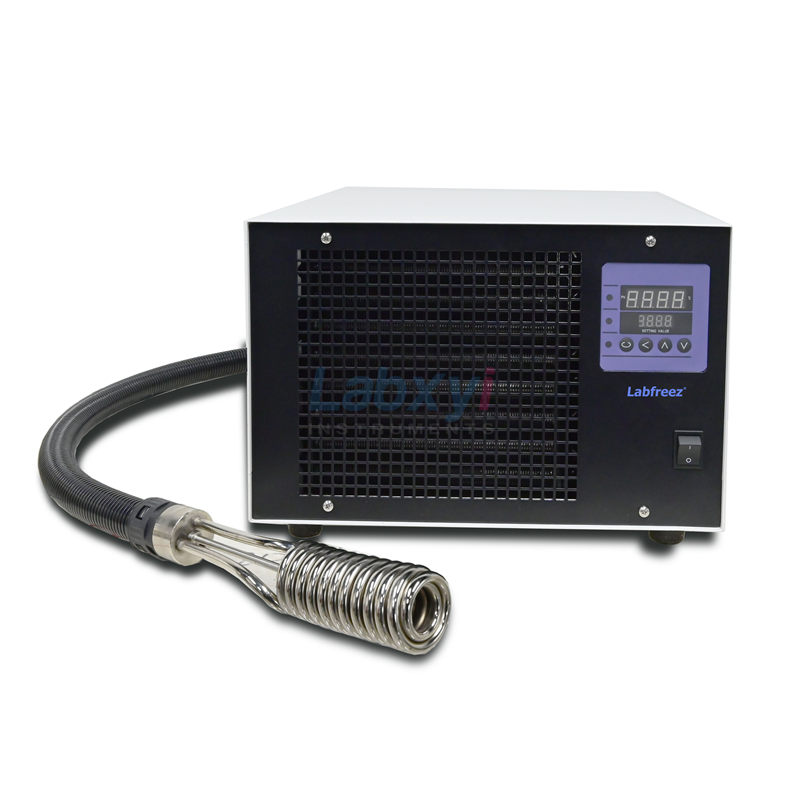

This series of multi-function cooler compressor refrigeration, cooling pipe and the hose connection between the host, light and flexible, can be placed in a variety of sump, to be completed by the low-temperature liquid bath. This machine comes with a temperature controller.
Features:
- Convenient and flexible to move.
- Refrigeration coil volume compact, easy to insert a smaller container.
- Dynamic temperature control system, fast response, constant temperature fluctuations.
- Refrigeration system of key components such as compressors, fans and other imported brand-name products.
- Cooling power to meet the small laboratory analytical instrumentation cooling and thermostat.
Parameters:
| Model |
IC201 |
IC202 |
IC401 |
IC402 |
|
|
Temp. Range |
-20 ~ 20 °C |
-20 ~ 20 °C |
-40~20 °C |
-40 ~ 20 °C |
|
|
Temp. accuracy |
±2 °C |
±2 °C |
±2 °C |
±2 °C |
|
|
coil size |
φ50×150 mm |
φ50×150 mm |
φ75×180 mm |
φ75×180 mm |
|
|
hose length |
1600 mm |
1600 mm |
1600 mm |
1600 mm |
|
|
Cooling capacity |
0°C |
300 |
800 |
320 |
780 |
|
-20°C |
140 |
400 |
180 |
360 |
|
|
-40°C |
– |
– |
60 |
140 |
|
|
Weight |
22KG |
25KG |
29KG |
35KG |
|
|
Dimension (W×D×H)mm |
400×415×280 |
420×415×280 |
400×415×280 |
400×415×280 |
|
|
Power |
AC220v 50Hz 6A |
AC220v 50Hz 10A |
|||
