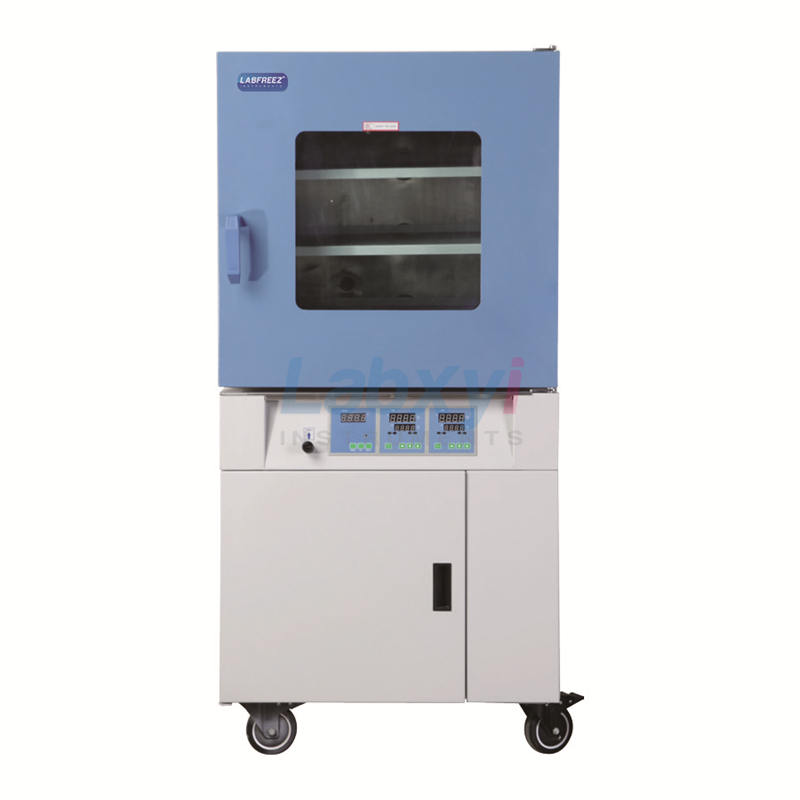

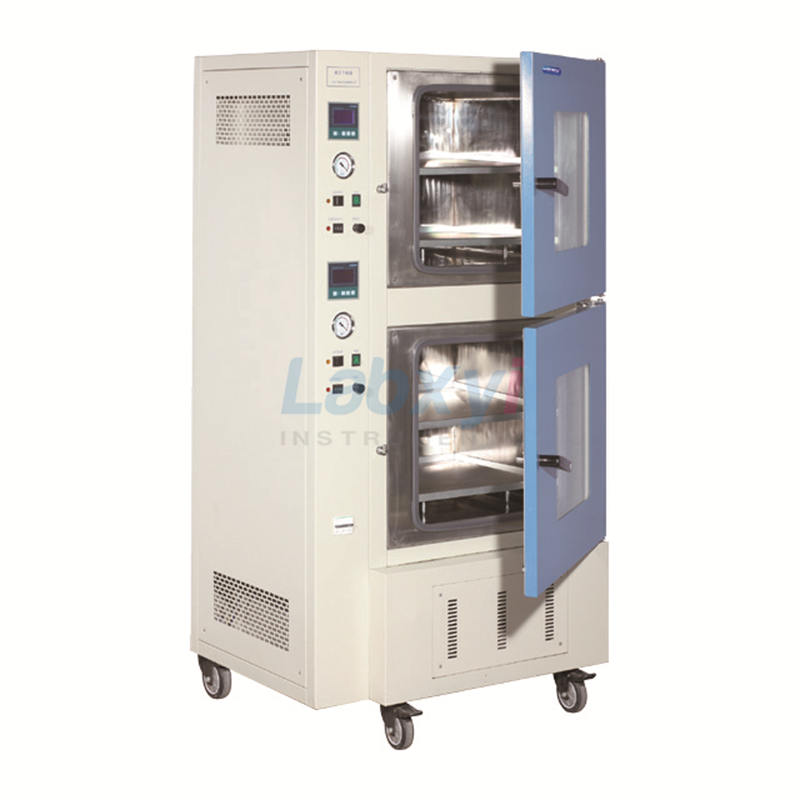

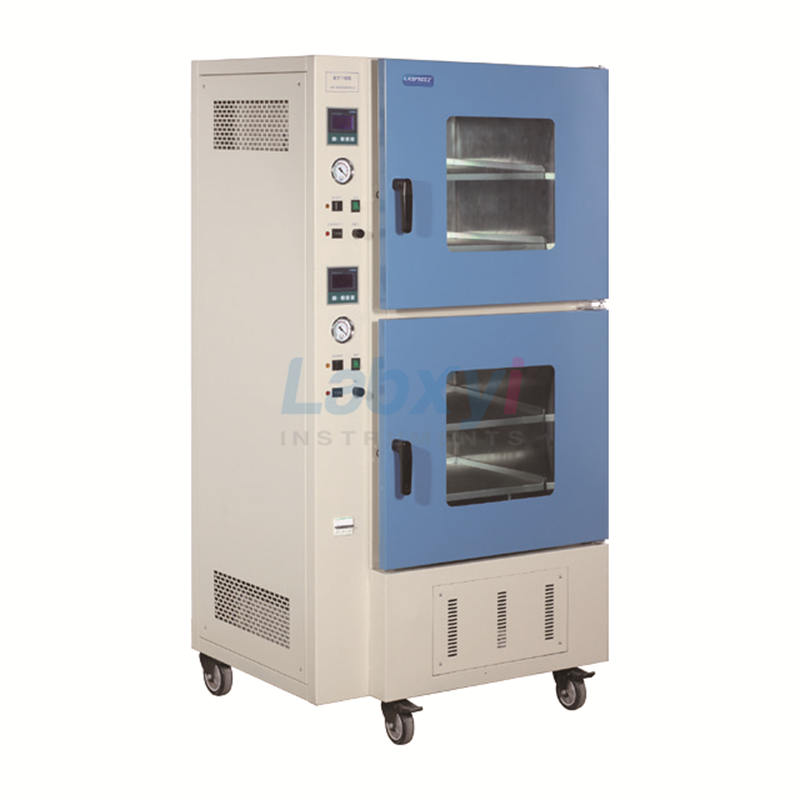

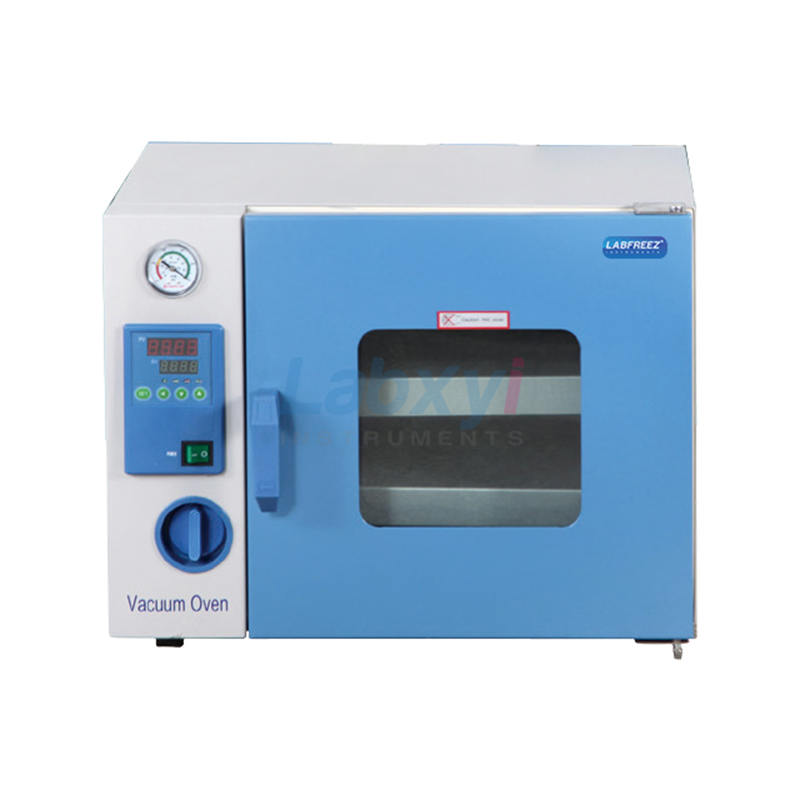

DO-VP Series vacuum drying oven designed for drying heat-sensitive, easily decomposed easy oxidizing materials and design, able to house filled with inert gases, in particular some of the ingredients of complex objects can be quickly dried. Widely used in the pharmaceutical, electronics and chemical industries.
Features:
- Digital microcomputer temperature controller with timer function, reliable & accurate
- Rectangular chamber to ensure maximum effective volume.
- Tempered & bulletproof double layer glass door, easy to observe the work of the chamber.
- The door tightness can be adjustable, integrally molded silicone rubber door seal to ensure high vacuum chamber.
- Inside chamber made of stainless steel or brushed plate is made to ensure durability.
- Model name with “D” means intelligent 10-segment programmable LCD controller.
- Model name with “LC” means vacuum controllable by LCD.
Specifications:
| Model |
DO-VP Series |
|||
|
DO-VP-6500 |
DO-VP-6210 |
DO-VP-6090 |
DO-VP-6050 |
|
|
Power supply |
380V 50Hz |
220V 50Hz |
||
|
Input power |
3600W |
2200W |
1400W |
1450W |
|
Temp. range |
+10°C～200°C |
+10°C～250°C |
||
|
Temp. resolution |
0.1°C |
|||
|
Temp. fluctuation |
±1°C |
|||
|
Vacuum |
<133Pa |
|||
|
Ambient Temp. |
5°C～40°C |
|||
|
Internal size(mm) |
630*810*845 |
560*600*640 |
450*450*450 |
415*370*345 |
|
External size(mm) |
790*1030*1855 |
720*805*1680 |
610*660*1400 |
730*560*550 |
|
Shelf (independent temp. control) |
4 pcs |
3 pcs |
2pcs |
DO-VP-6050 2pcs |
|
Chamber material |
Stainless steel（1Gr18Ni9Ti） |
|||
|
Timer range |
1～9999 minutes |
|||
|
Model |
DO-VP Series |
|||||||
|
DO-VP-6051 |
DO-VP-6021 |
DO-VP-6020 |
DO-VP-6030A |
DO-VP-6020B |
||||
|
Power supply |
220V 50Hz |
|||||||
|
Input power |
1450W |
450W |
350W/450W |
|||||
|
Temp. range |
+10°C～200°C |
+10°C～250°C |
+5°C～65°C |
|||||
|
Temp. resolution |
0.1°C |
|||||||
|
Temp. fluctuation |
±1°C |
±0.5°C |
||||||
|
Vacuum |
<133Pa |
|||||||
|
Ambient Temp. |
5°C～40°C |
|||||||
|
Internal size(mm) |
415*370*345 |
300*300*275 |
320*320*300 |
300*300*275 |
||||
|
External size(mm) |
730*560*550 |
605*490*450 |
630*510*490 |
605*490*450 |
||||
|
Shelf (independent temp. control) |
2pcs |
1pc |
DO-VP-6020B 1pc |
|||||
|
Chamber material |
Cold-rolled plate（08F） |
Stainless steel（1Gr18Ni9Ti） |
||||||
|
Timer range |
1～9999 minutes |
|||||||

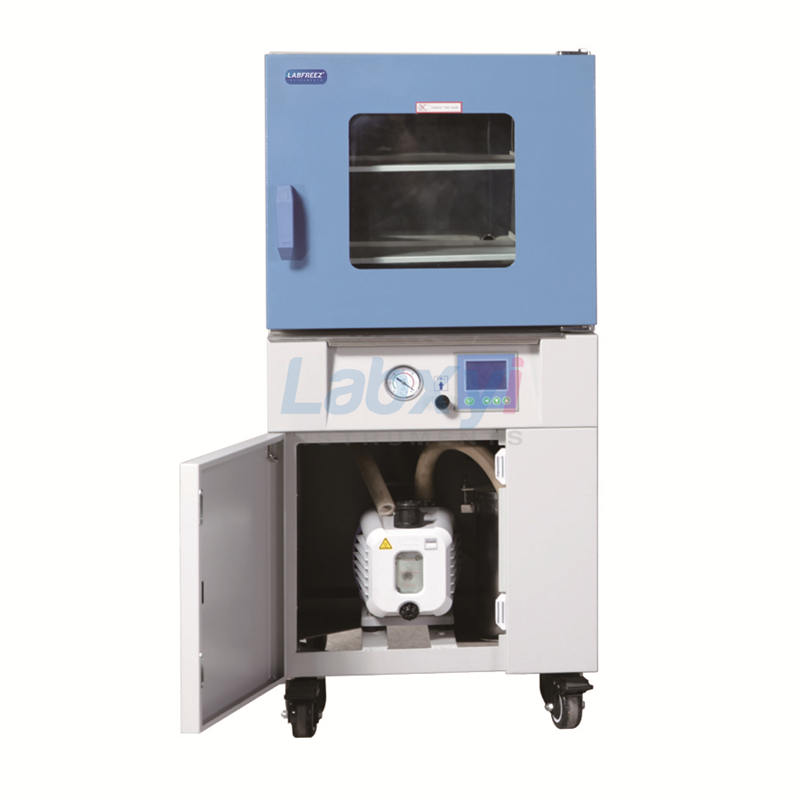

Note：vacuum pump was included in 6090, 6210, 6500 & LC series, while it is optional for others.
