APPLICATION
Applied to biological, pharmaceutical, food crystal beverage and chemical environmental protection industries
Process principle
In order to achieve the purpose of separation and purification, the permeation membrane is selected as the separation medium, and a driving force is applied on both sides of the membrane so that the raw material side components selectively permeate through the membrane.
Features
| Operate under room temp. | Very little loss of active ingredients, especially suitable for heat sensitive substances |
| No phase change | Maintain the original flavor, and consume very low energy |
| No chemical changes | Typical physical separation process, without chemical reagents and additives, products are not contaminated |
| Good selectivity | Material separation can be done in the molecular range |
| Wide range of applications & strong adaptability | Large or small scale, continuous or Intermittent, Simple process, convenient operation and easy automation |
Range classification
Divided into microfiltration MF, ultrafiltration UF, nanofiltration NF and reverse osmosis RO according to membrane size

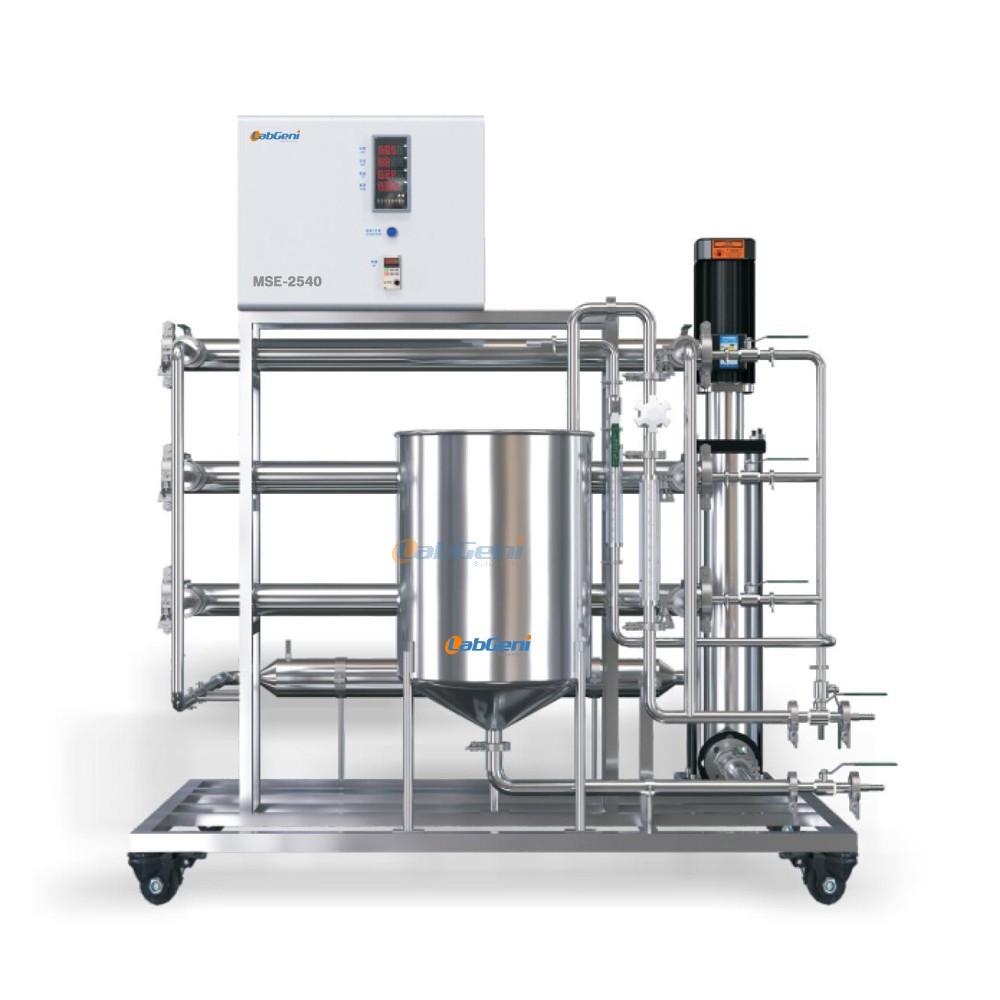

Roll membrane ultrafiltration Separation equipment
Basic information
- Model: MSE -2540
- Processing capacity: 20 ~ 50L/H
- Membrane element: GE imported roll type membrane, Single membrane area 1.2 ~ 1.5㎡
- Power unit: Imported GRUNDFOS pump, 0 ~ 25Bar（Frequency adjustable）
- Material circulation tank: Effective volume V=60L
System overview
- Laboratory type LABGENI® MSE-2540 mainly used in separation and purification of ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO), can be used for filtration, decoloration, desalination, purification and concentration
- According to the size of the molecular weight of the separation material, the membrane is selected; The material from 0.03 mu m to 100daltion can be separated.
- With the advantages of easy cleaning, maintenance and high freedom of use.
Power unit
- Imported GRUNDFOS pump
- Variable frequency control, adjustable from 20 to 50Hz, with wide range of use
- Rate of flow: 200 ~ 1100L/H
- Pressure: 0 ~ 25 Bar adjustable
Membrane Shell
- 3 parallel membrane wall
- Connection: High pressure clamp quick release connection, pressure 20Mpa
- Material: AISI 304
- Surface treatment: External surface brushed treatment, inner surface mirror polishing, with food hygiene grade
Roll type membrane elements
- 3 pieces GE imported roll membrane
- Model No.: 2540 industrial separation membrane, anti fouling membrane
- Scope of application: microfiltration, ultrafiltration, nanofiltration, reverse osmosis
- The 2540 membrane has GE, Dow Chemical brand membrane with rich diversity lateral comparison test; The universal membrane shell adapts to a variety of brand membrane
Control cabinet
- Field instrument control cabinet
- Control mode: PID instrument control, automatic adjustment
- Sensor: Temperature electrode, pressure sensor, frequency conversion motor
- Flow meter: Field flow meter, manual adjustment
- Instrument: Four in one display + control instrument, frequency conversion regulator
Material standard
- Contact material part: Material AISI 304, sanitary hose
- Non contact material part: Material AISI 304, carbon + spray paint
- pipeline: Sanitary seamless stainless steel pipe
- Valve: Food grade sanitary direct pass ball valve, diaphragm valve
Specification parameter of Roll membrane ultrafiltration Separation equipment
| Model | MSE-2540 |
| Processing capacity: | 20~50 L/h |
| Power unit | Imported GRUNDFOS pump, frequency conversion control, with high voltage protection settings |
| Working pressure | 0 ~ 25 bar adjustable |
| Membrane element: | ● Membrane species: GE imported roll type separation membrane – roll type ultrafiltration, nanofiltration, RO membrane ● Quantity: 3● Single membrane area: effective area 1.2 ~ 1.5 m2● Membrane element length: 1016mm ● Membrane shell: Material AISI 304, high pressure clamp quick disconnect, Anti-pressure : 20Mpa●Membrane aperture: Interception accuracy >95%( Standard material test) MWCO 200KD,100KD, 10KD,5KD, 2K,1K,600D,300D,150D,100D, RO, customized |
| Valves, flow meter: | Imported automatic ball valve, imported liquid mass flow meter |
| pipeline: | Material AISI 304, sanitary inside and outside polishing, with stainless steel pipe heat exchanger |
| Electric control cabinet: | ● SIEMENS PLC control module ● 15 inch LCD high-definition touch screen● Temperature, pressure, flow, pump frequency conversion control operation, curve and data record and export● Temperature and pressure preset alarm |
| Material circulation tank: | AISI 304, effective volume =60L |
| System upgrade: | ●Material, heat exchanger, flowmeter, valve, pump, etc., can be customized according to the user’s environment
●Semi automatic and automatic control system can be customized according to user requirements |
| Size: | 1405x1005x1800mm |
| Weight: | 110 kg |
